Blink X
BLINK-X Platform
XPLORE THE DIGITAL DIMENSION.
X

BLINK X is the pathway to BLINK Bead exploration, opening a world of possibilities to create digital assays with unprecedented performance.

The BLINK X is an integrated technology package that allows you to develop novel BLINK Bead test assays whether for your research, laboratory assays or with an eye to future product development on a fully automated platform such as the BLINK One for Point-of-Care use or other solutions for laboratory process automation.

The journey starts here.

BLINK X Instrument

A four-channel fluorescence imager with integrated thermocycling module for BLINK X Mini-plate.

BLINK X SHAKER

A small vertical shaker for efficient transfer of BLINK Beads from aqueous solutions to an oil phase, providing for a stable Bead suspension and cross-talk free target amplification.

BLINK X LOADING RACK & MINI PLATE

A magnetic rack that accommodates the BLINK X Mini-plate. It facilitates simple loading of processed Bead samples onto the Mini-plate and alignment of the Beads in a self-assembled monolayer for detection.

BLINK X PROCESSING RACK

A magnetic rack for manual processing of BLINK Beads in micro-well strips or tubes for nucleic acid extraction and purification.

Powered by
Blink Beads

BLINK Bead technology integrates sample preparation and ultraplex digital analysis. BLINK X is the product platform to explore this technology in your own lab and start developing ideas on where this approach may take you in your own research and development.

Blink Bead
Bead background

BLINK X enables development of next generation fully integrated digital assay design.

Next Generation Fully Integrated Digital Assay Design

Unlike other digital assay technology BLINK Beads integrate sample preparation with a complete analysis workflow. By using the same carrier for nucleic acid extraction/enrichment, extraction yield is improved, and total captured material is used in the analysis, providing more precise and sensitive results.

BLINK X WORKFLOW

Sample
SAMPLE

Different samples can be processed with BLINK Beads.

BLINK X Processing Rack
BLINK X
PROCESSING RACK

Nucleic acid extraction steps and loading of amplification reagents are performed on the Processing Rack.

Lysed Sample
Lysis and binding

The sample material is lysed and contacted with Beads.

Bead Binding
BINDING

An optimized binding buffer is added to the solution. Nucleic acids bind to Beads.

Bead Wash
WASHING

A wash step removes un-specifically bound materials leaving purified nucleic acid bound to the Bead.

Bead Loading
BEAD LOADING

Amplification reagents (RT/PCR enzymes, dNTPs are added to the Beads.

BLINK X Shaker
BLINK X SHAKER

A suspension of Beads in oil is generated with the Shaker.

Bead suspension in oil.
BEAD SUSPENSION
IN OIL

Beads are separated by oil and contain defined volume of amplification solution.

BLINK X Loading Rack
BLINK X LOADING RACK

Loading of Beads on Mini-Plate is facilitated with the Loading Rack.

Monolayer Formation
bead monolayer formation

Beads are placed in wells and aligned in monolayer formation for thermocycling and fluorescence imaging.

BLINK X Instrument
BLINK X INSTRUMENT

Thermocycling and fluorescence imaging are performed on the Instrument.

Fluorescence  detection
Thermocycling AND Fluorescence Detection

PCR amplification and fluorescence detection are performed on the Beads with the BLINK X Instrument.

Bead analysis
DECODING AND ANALYSIS

Image analysis provides for Bead decoding and PCR analysis. The quantity of each amplified target is determined for the samples processed on the Mini-Plate.

Left Arrow
Right Arrow
BLINK X icon

Xpand the digital dimension

Using BLINK Beads you can apply the principles of digital assay design beyond PCR to create any class of assay.

Digital assays are based on partitioning the sample into thousands of independent reactions, a function that the BLINK Beads are optimally designed to achieve.  After being loaded with targets and amplification reagents and transferred to oil, each Bead forms an isolated reaction compartment for performing independent enzymatic reactions. This approach is typically utilised for PCR based assays; the Beads provide the technology to apply this principle to other enzymatic assays.

BLINK Bead icon

Molecular Integration

BLINK has accelerated digital PCR to the next generation.

BLINK Beads provide microfluidics-free digital PCR, enabling unprecedented performance and novel assay schemes to empower your next scientific breakthrough.

With the ability to provide a complete analysis workflow on a single reagent carrier, single molecule sensitivity, exquisite quantification and results in 15 minutes the BLINK Beads coupled with the BLINK X platform are the pathway to endless possibilities.

Ultrafast d-PCR icon

Fast D-PCR

BLINK’s design drastically reduces time to result.

By integrating sample prep and the entire assay workflow within individual Beads workflows are completed in 15 minutes from sample to result.

All material is amplified in a minimised volume distributed across thousands of individual compartments which provide for optimal thermal control, enabling fast cycling on BLINK’s hardware.

Basic Assay Formats
Digital PCR icon

Digital PCR Assay

Microfluidics-free absolute target quantitation with pre-made Bead nanoreactors. Single molecule sensitivity with wide measurement range.

Ultraplex icon

Ultraplex

Ultraplexing is highly flexible and sensitive multiplexing. It provides fully quantitative detection for each target across the entire measurement range without cross-interference from other targets in the panel.

Sample Multiplex Icon

Sample Multiplex

Selective encoding of individual samples with encoded Beads, allowing for parallel processing of multiple samples in one test assay.

BLINK X Logo
WHERE WILL THE BLInK X TAKE YOU?

While our development of the BLINK Beads has revealed many of their capabilities, there is still much to be discovered.

Register your interest in the BLINK X today.

Register your interest
Scientist
Ultraplex icon

Digital Ultraplex Assays

Ultra-sensitive + Multiplex = Ultraplex

The unique characteristics of the BLINK Beads translate into extraordinary assays. With BLINK Beads you can achieve ultra-sensitive assays and exquisite quantification.

When you equip the Beads with different primers and probes they can be combined to form complex digital multiplex panels by assigning the analyte specific reagents to a specific fluorescent code. Assay reactions are carried out in individual Bead compartments, eliminating competition for molecular resources and providing the ability to quantitate different concentration levels of targets in one reaction.

BLINK X Instrument icon

Infinite Applications

The performance characteristics of this technique, namely single molecule sensitivity and exquisite quantification, are ideally suited to advanced applications such as copy number variation, rare mutation detection, gene expression and miRNA analysis, GMO detection, and NGS validation and preparation.

The applications of dPCR will continue to expand as platforms evolve and improve. The BLINK X platform is the next step in this journey, offering a greatly simplified approach to assay development and implementation.

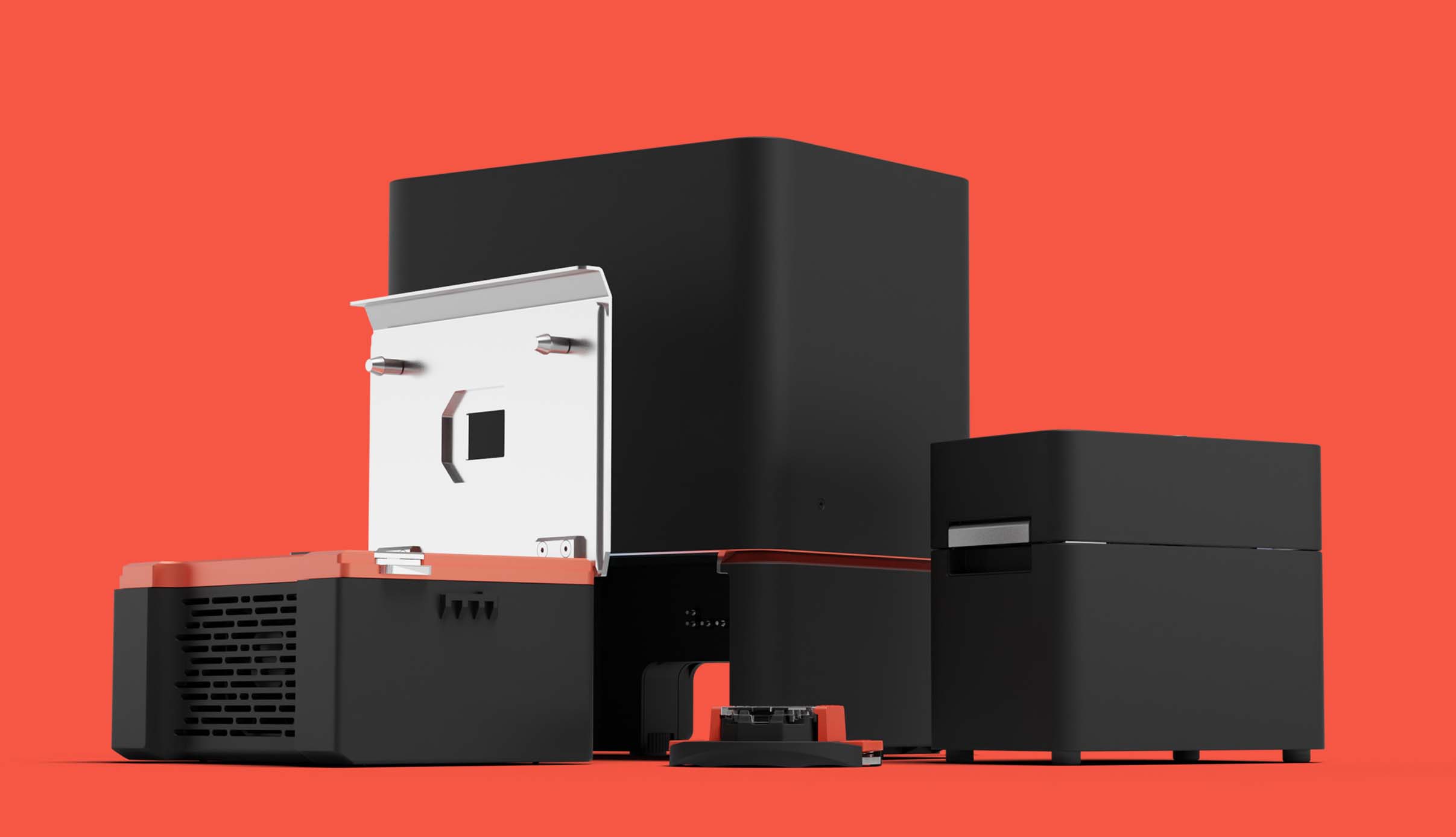

BLINK X Platform
Power icon

Getting Started is Simple

Clever does not mean complicated. The BLINK X is designed with usability at its core. We have created a technology package that is easy to setup and run.

Developers receive the BLINK X equipped with the BLINK Toolbox software package. The Toolbox is an assay design and development software platform that facilitates the development and validation of new assays on the platform. It is connected to the BLINK Hub, a cloud-based development portal managed by BLINK. The Hub provides for continuous documentation of achieved development results and gives access to template development documentation, technical test information and analysis software.

The BLINK team is there to support you all the way, providing training and support throughout your development journey.

BLINK X Platform Orange
BLINK X Instrument
BLINK X Instrument

A four-channel fluorescence imager with integrated thermocycling rack for BLINK X Mini-plate

BLINK X Shaker
BLINK X Shaker

A small vertical shaker for efficient transfer of BLINK Beads from aqueous solutions to an oil phase, providing for a stable Bead suspension and cross-talk free target amplification.

BLINK X Mini-Plate
BLINK X Mini-Plate

A 6-chamber plate optimized for simple BLINK Bead loading with standard laboratory pipettes and Bead self-assembly into a monolayer for thermocycling and fluorescence detection. It is designed to be used with the BLINK X Loading Rack.

BLINK X Loading Rack
BLINK X Loading Rack

A magnetic rack that accommodates the BLINK X Mini-plate. It facilitates simple loading of processed Bead samples onto the Mini-plate and alignment of the Beads in a self-assembled monolayer for detection.

BLINK X Processing Rack
BLINK X Processing Rack

A magnetic rack for manual processing of BLINK Beads in micro-well strips or tubes for nucleic acid extraction and purification.

BLINK Bead Kit
BLINK X Bead Kits

Different kits for various applications are available. The kits contain all reagents for high yield nucleic acid extraction, target amplification and detection.
